Kapton tape

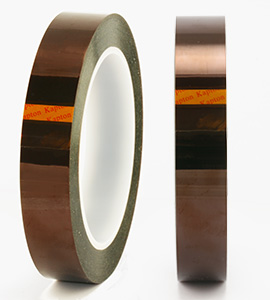

Single sided Kapton tapes consist of a Kapton polyimide film with a silicon adhesive and is especially useful for:

  • Masking on printed circuit boards during soldering
  • Masking for vacuum deposition
  • Holding specimens or parts in high vacuum
  • Positioning tape for cryo applications
  • Electrical insulation on transformers, coils and electro motors

Kapton tape has good adhesion properties on difficult surfaces with low adhesive transfer, leaving cleaner surfaces after removal. The tape is self-wound without a liner. If used as temporary tape or transfer tape, only minimum pressure needs to be applied. Kapton tape has low outgassing properties and is an ideal tape for high vacuum applications. Available in widths from 3mm to 50mm with a length of 33m. Kapton tapes are mounted on a clean 76mm diameter plastic core.

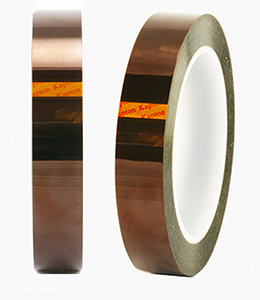

Double-sided Kapton tapes consist of a polyimide film with silicon adhesive on both sides to provide excellent adhesion on difficult surfaces for:

  • Holding specimens for vacuum deposition
  • Holding TEM grids during deposition and processing
  • Positioning tape for cryo applications
  • Masking in high temperature environments
  • Electrical insulation on transformers, coils and electro motors

The tape is wound between two polyester liners which make clean handling of the tape easy – unwind the tape from the first liner and leave on the second liner. Apply tape and remove second liner. It has minimal adhesive transfer. When used as a temporary tape or transfer tape, avoid pressing down on the tape. Due to its low outgassing properties double-sided polyimide tape is ideal for high vacuum applications for specimen processing. Available in widths of 5, 10 and 20mm with a length of 20m on a clean 76mm diameter plastic core.

Single-sided Kapton tapes

Tape material Kapton polyimide
Adhesive  Silicone adhesive
Color Amber to brown
Film thickness 0.03mm
Adhesive thickness  0.04mm
Total tape thickness 0.07mm
Adhesive strength 26N/25mm
Tape strength 200kPa
Dielectric strength 8kV
Chemical resistance Excellent to acids, oils and solvents
Use temperature range  -75 to +260 °C
Length 33m
Core diameter  76mm (3”)

Double sided Kapton tapes

Tape material Polyimide
Adhesive  Silicone adhesive
Color Amber to brown
Film thickness 0.03mm
Adhesive thickness  0.04mm (2x)
Total tape thickness 0.11mm
Liner thickness 0.12 (2 x 0.06)
Adhesive strength 26N/25mm
Tape strength 200kPa
Dielectric strength 6.5kV
Chemical resistance Excellent to acids, oils and solvents
Use temperature range  -75 to +260 °C
Length 20m
Core diameter  76mm (3”)

Ordering information:
