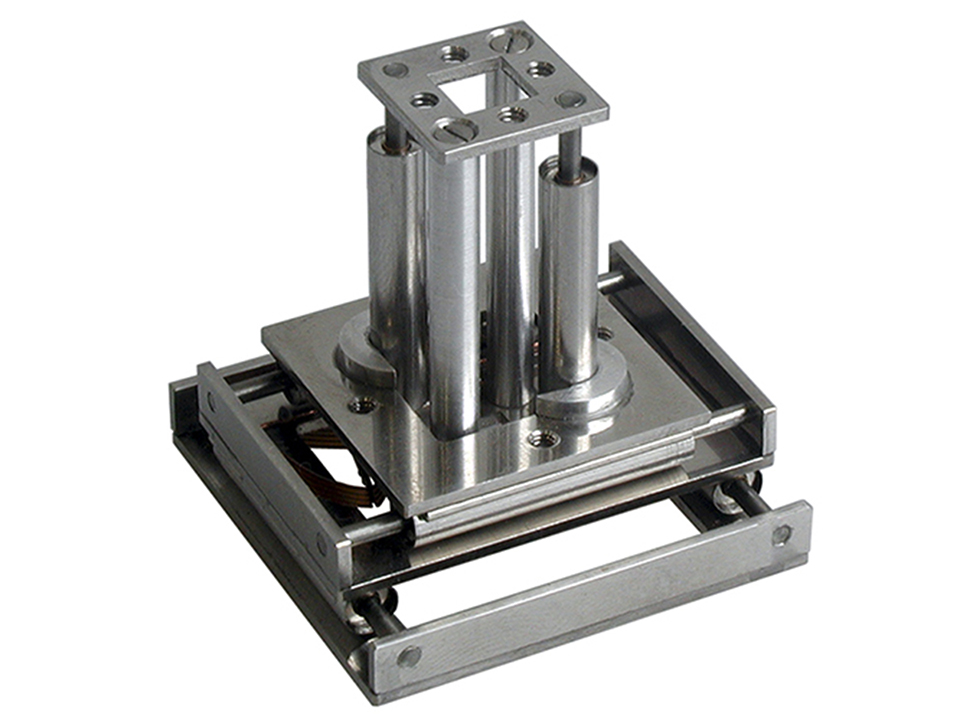

Kleindiek LT-3310 linear table substage

The Kleindiek range of stages (linear tables) are suited for orthogonal po­sitioning solutions in atmosphere, SEM/FIB, UHV and at low temperatures.

The LT3310 is primarily used in SEM/FIB to enhance the accuracy and functionality of the standard mi­croscope stage. It is available in varying configurations for x,y,z and r movements.

Its smooth motion and rotational axis make it ideal for cell and particle counting.

In addition, the small size of the  LT-3310 is designed for nanomanipulation ap­plications where weight and space are highly re­stricted and for high-precision work in extreme UHV environments.

Technical specifications

  • Length 33 mm / Width 33 mm
  • Height XY 11.6 mm / Height XYZ 30 mm + 7 mm travel / Height XYR 16.6 mm
  • Weight XY 22 g  / Weight XYZ 34 g / Weight XYR 27 g
  • Travel XY 10 mm / Travel Z 7 mm / Travel R 360° unlimited
  • Speed up to 1 mm/s
  • Resolution XYZ < 0.5 nm  / Resolution R 10-7 rad
  • Load 50 g
  • Lift 25 g
  • Maximum sample size 25 mm × 25 mm
  • Temperature range 273 K to 353 K / UHV version 273 K to 393 K
  • Lowest pressure 10-7 mbar / UHV version 2 × 10-10 mbar
  • Substage mounting 4 × 2 mm holes
  • Sample mounting 4 × M2 holes
  • Material Stainless steel

Each substage system includes control electronics, a joypad, PC software, a vacuum flange, a vacuum feedthrough and an operator’s handbook.
