Kleindiek LT3310 Substage with 10mm travel

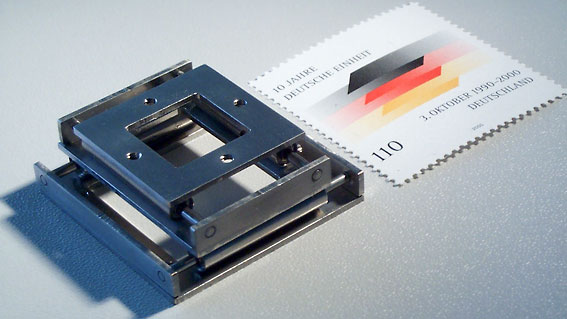

The LT3310 is a compact four axis substage that yields a high degree of freedom for a multitude of applications in FIB/SEM or UHV environments. Its smooth motion and rotational axis make it ideal for precision operations. In addition, the LT3310 is designed for nanomanipulation applications where weight and space are highly restricted and for high-precision work in extreme environments.
The LT3310 is available in different versions with combinations of XYZR movement.

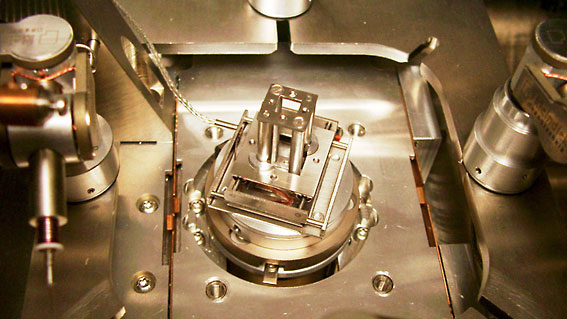

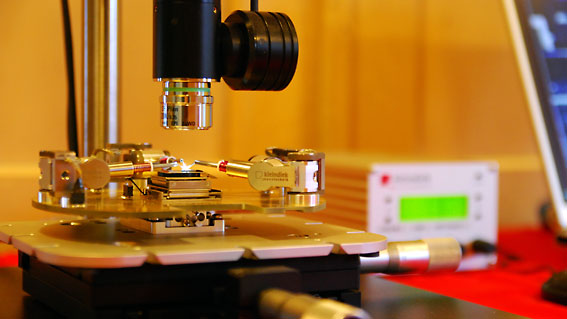

LT3310 stages are suited for orthogonal positioning solutions in atmosphere, SEM/FIB, UHV and at low temperatures.
The LT3310 is primarily used in SEM/FIB to enhance the accuracy and functionality of the standard microscope stage. Its smooth motion and rotational axis make it ideal for cell counting. In addition, the LT3310 is designed for nanomanipulation applications where weight and space are highly restricted and for high-precision work in extreme environments.
Brochure download:






Compact and flexible
- Small and practical
- Plug-and-play system with modular components
- Interfacing solutions for most microscopes
- Fast setup and removal
Clear and simple
- Result-oriented operation and increased throughput
- Intuitive control interfaces and software
- User-friendly and easy to learn
- Compact, stand-alone electronics with PC interface
- Pioneering cabling technology
Robust and stable
- Compact construction delivers higher resonance frequencies
- Excellent stability
- Low drift (1 nm/min)
- Reliable operation (one year endurance test)
- Virtually insusceptible to vibrations
- Fast pre-positioning by hand
Fast and precise
- No backlash or reversal play
- Sub-nanometer resolution (0.25 nm)
- Integrated coarse and fine displacement in one drive
- High operating velocity (up to 10 mm/sec)
- Smooth motion
- Length: 33 mm
- Width: 33 mm
- Height: 18.6 mm
- Weight: 30 g

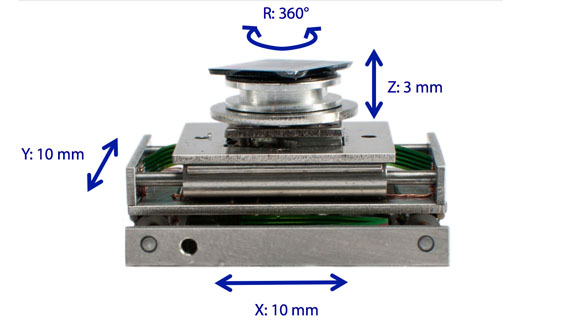

- Travel: XY = 10 mm, Z = 3 mm, R = 360° unlimited
- Speed: up to 1 mm/s
- Resolution: XYZ < 0.05 nm, R = 6.5 x 10–9 rad
- Load: 50 g
- Lift: 5 g
- Temperature range: 273 K to 353 K
UHV version: 273 K to 393 K
Low temp. version: 77 K to 393 K - Lowest pressure: 10–7 mbar
UHV version: 2 x 10–10 mbar - Substage mounting: 4 x 2 mm holes
- Material: Stainless steel
All technical specifications are approximate. Due to continuous development, we reserve the right to change specifications without notice.
Ordering information:
Kleindiek LT3310 substage variations
-
XY substage for electron microscopy
XY substage for electron microscopy with 10mm travel . The system includes control electronics, joypad, PC software, vacuum flange, vacuum feedthrough and an operator’s handbook.
Price On Request £0.00 Add to basket -
XY substage for UHV
XY substage for UNV application with 10mm travel. The system includes control electronics, joypad, PC software and an operator’s handbook. Vacuum flange and vacuum feedthrough(s) to be supplied by the customer.
Price On Request £0.00 Add to basket -
XYR substage for electron microscopy
XYR substage for electron microscopy with 10mm travel in X and Y as well as unlimited rotation. The system includes control electronics, joypad, PC software, vacuum flange, vacuum feedthrough and an operator’s handbook.
Price On Request £0.00 Add to basket -
XYZ substage for electron microscopy
XYZ substage for electron microscopy with 10mm travel. The system includes control electronics, joypad, PC software, vacuum flange, vacuum feedthrough and an operator’s handbook.
Price On Request £0.00 Add to basket -
XYZ substage for UHV
XYZ substage for UHV applications with 10mm travel . The system includes control electronics, joypad, PC software and an operator’s handbook. Vacuum flange and vacuum feedthrough(s) to be supplied by the customer.
Price On Request £0.00 Add to basket -

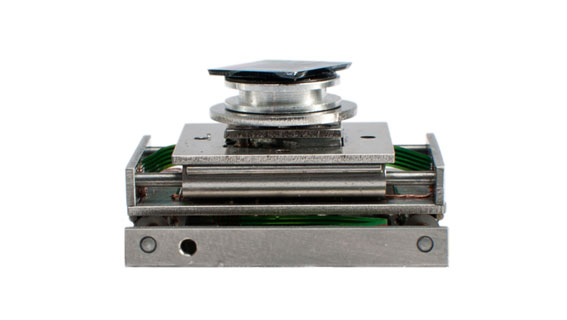

XYZR substage for electron microscopy
XYZR substage for electron microscopy with 10mm travel in X and Y, 3 mm travel in Z and unlimited rotation. The system includes control electronics, joypad, PC software, vacuum flange, vacuum feedthrough and an operator’s handbook.
Price On Request £0.00 Add to basket -
XYZR substage for UHV
XYZR substage for UHV – substage with 10 mm travel in X and Y- 3 mm travel in Z- unlmited rotation for UHV applications. The system includes control electronics- a joypad- PC software and an operator’s handbook. Vacuum flange and vacuum feedthrough(s) to be supplied by the customer.
Price On Request £0.00 Add to basket -
Substage for electron microscopy
Substage for electron microscopy
Price On Request Read more
