Micro heating stage for up to 450°C

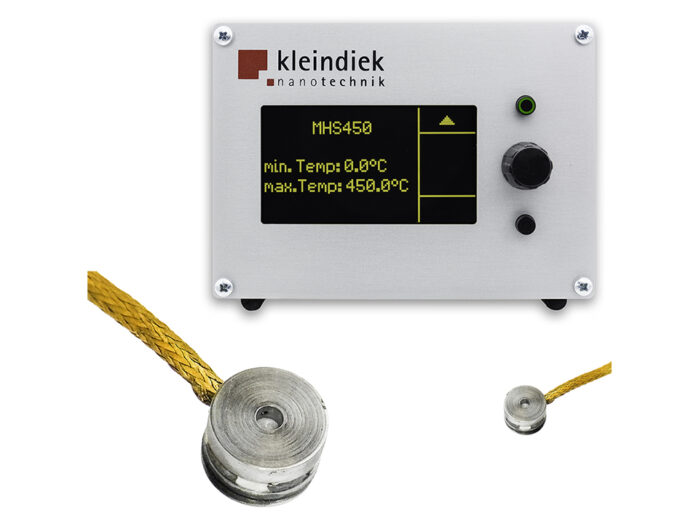

The Micro Heating Stage 450C (MHS450) is built in the same form factor as standard SEM stubs and can be mounted to your SEM stage in the same way as stubs. The heating stage is supplied with a temperature control unit which allows the stage to be heated from room temperature up to 450°C. The MHS450 is supplied with special sample holders that can be inserted into the heating stage’s receptacle. Mounting samples to these holders is achieved using a special carbon-based adhesive. The Micro Heating Stage utilizes the same feedthrough system as Kleindiek micromanipulators and can be used in conjunction with our other micromanipulation products. Technical specifications: diameter: 14mm, overall height: 14mm, pin length: 6mm, pin diameter: 3.2mm, temperature range at air: RT – 200°C, temperature range in vacuum: RT – 450°C , temperature resolution: 0.1°C. Temperature accuracy: tolerance class B according to DIN EN 60751. Heating-up time from room temperature: 100s to 100°C, 200s to 400°C (in vacuum, depending on vacuum level). Cooling-down time from 400°C: 100s to 200°C, 300s to 100°C (in vacuum, depending on vacuum level). Pressure range: 1E-7 mbar to atmospheric pressure. The system includes a temperature control unit and an operator`s handbook.
