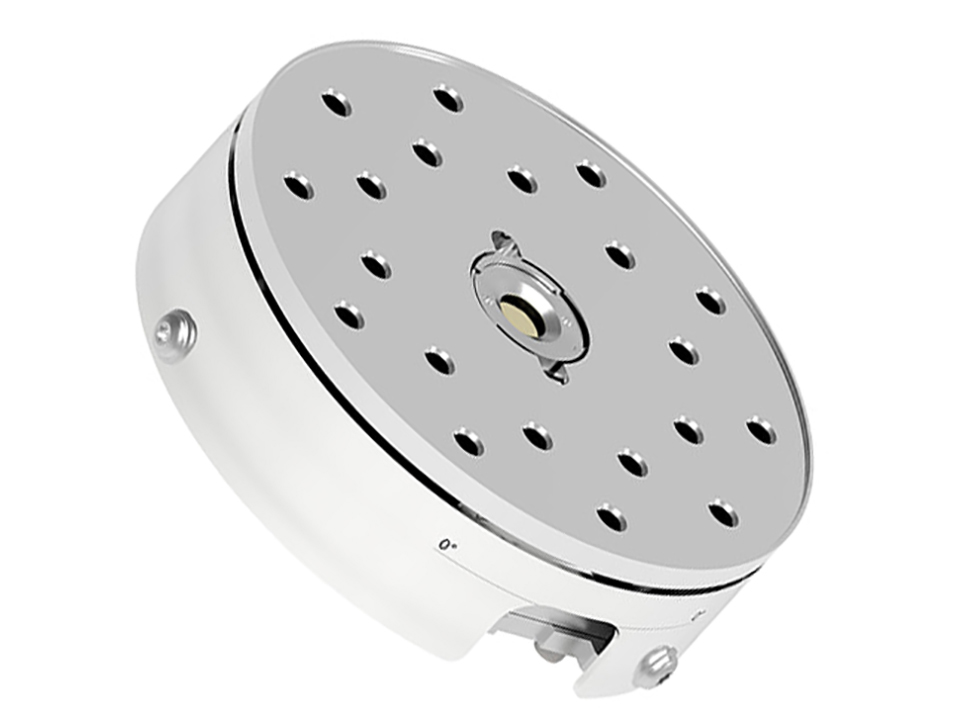

RS-010 rotary table

SKU: 100005 Category:

Plug-in style rotary specimen table with smooth adjustment of table height, tilt angle and rotational speed. The 80mm diameter stage has locations for up to 20 standard (13 mm) SEM pin stubs or five 25mm stubs. On request other sizes and styles of SEM stubs can be accommodated.

Consisting of: base plate connected to the tilt and height adjustable specimen table of the CCU-010 basic unit, sample holder for five large (Ø 25.4mm) or 20 small (Ø 12.7mm) SEM pin stubs, DC-micro motor for rotation, quartz sensor (center), speed control 0 … 100% or 0 .. 20rpm approximately
