EM-Tec compact and universal vice sample holders
Vice-type specimen holders are quick and easy to use. They hold the specimen by clamping it between moving jaws, which enables quick specimen loading and reduces down time. They are especially useful when similar specimens or series of the same specimen need to be examined. Using a vice specimen holder is easier, quicker and cleaner than using conductive adhesives or glue. A vice clamps the specimen and provides the rigidity needed for high resolution imaging. Available EM-Tec SEM specimen are:

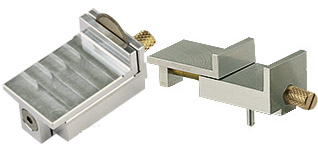

- EM-Tec V22 compact vice specimen holder for specimen sizes up to 0-22mm. One fixed jaw and a spindle-driven moving jaw. A cost-effective, compact vice which can be used in both standard SEMs and table top SEMs. Made from vacuum grade aluminium with a brass spindle and stainless steel screws.
- EM-Tec V22L low profile version of the EM-Tec V22 compact vice holder. The jaws are 3mm high instead of 10mm, the rest is the same.

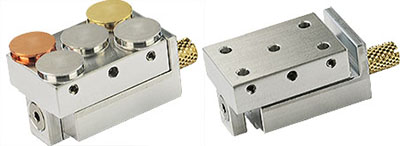

- EM-Tec MV22 combined compact vice holder (0-22mm) plus multi-pin stub holder for up to five standard 12.7mm SEM pin stubs. This cost-effective multi-specimen holder has been designed for table top SEMs and SEMs with smaller specimen stages. It has one fixed jaw and a spindle drive to move the other jaw. Made from vacuum grade aluminium, brass spindle and stainless steel screws.
- EM-Tec 3V22 triple compact vice holder includes three separately adjustable EM-Tec V22 compact vices on a single base plate. This enables holding and investigating of three different specimens to save on SEM venting and pumping time. Made from vacuum grade aluminium, brass spindles and stainless steel screws.
- Additional optionally available vice jaws are:
- vice jaw with a single 120° large groove for round specimens
- standard vice jaws with triple grooved/smooth side – vice jaws can be stacked to increase the jaw height from 12 to 24mm.
Made from vacuum grade aluminium, brass sliders and stainless steel rods and springs.
EM-Tec vice specimen holders are available with pin and with an M4 threaded hole. For use on JEOL SEMs, we suggest the use of an EM-Tec SEM stub adaptor.
Download our Technical Support Bulletins:
Technical Support Bulletin: TSB 12-000200 EM-Tec V22 compact vice type sample holder
Technical Support Bulletin:TSB 12-000200 EM-Tec V22 compact vice type sample holder
Technical Support Bulletin: TSB 12-002400 EM-Tec 3V22 triple compact vice sample holder
#12-000200 (with pin) or #12-000300 (M4 thread).
#12-002400 (with pin) #12-003400 (with M4)
#12-000201 (with pin) #12-000301 (with M4)
Specifications of EM-Tec compact and universal vice clamp holders:
| Product # | Type | Dimensions | Max. specimen size | Clamping method | Stage compatible |
| 12-000200 | EM-Tec V22 | 39x25x22mm | 22mm | Spindle driven | 3.2mm SEM pin stub |
| 12-000300 | EM-Tec V22 | 39x25x22mm | 22mm | Spindle driven | M4 thread |
| 12-003319 | EM-Tec V14 | 25x25x12.5mm | 13-15mm | Spindle driven | M4 thread |
| 12-003219 | EM-Tec V14 | 25x25x12.5mm | 13-15mm | Spindle driven | M4 thread |
| 12-000201 | EM-Tec MV22 | 39x25x22mm | 22mm | Spindle driven | 3.2mm SEM pin stub |
| 12-000301 | EM-Tec MV22 | 39x25x22mm | 22mm | Spindle driven | M4 thread |
| 12-002400 | EM-Tec 3V22 | 39x76x27mm | 22mm (3x) | Spindle driven (3x) | 3.2mm SEM pin stub |
| 12-003400 | EM-Tec 3V22 | 39x76x27mm | 22mm (3x) | Spindle driven (3x) | M4 thread |
| 12-002217 | EM-Tec 3V22 | 48x25x27mm | 18/24mm | Spindle-driven | 3.2mm pin stub |
| 12-003317 | EM-Tec 3V22 | 8x25x27mm | 18/24mm | Spindle-driven | M4 thread |
Ordering information:
-
V22 compact vice type sample holder for up to 22mm – pin
EM-Tec V22 compact vice type sample holder for up to 22mm – pin (each)
£96.55 Add to basket -
MV22 compact vice (0-22mm) plus multi-pin stub holder – pin
EM-Tec MV22 combined compact vice (0-22mm) plus multi-pin stub holder – pin (each)
£114.11 Add to basket -
V22 compact vice type sample holder for up to 22mm – M4
EM-Tec V22 compact vice type sample holder for up to 22mm- M4 (each)
£94.36 Add to basket -
Combined vice (0-22mm) plus multi-pin stub holder – M4
EM-Tec MV22 combined compact vice (0-22mm) plus multi-pin stub holder – M4 (each)
£111.91 Add to basket -
Triple compact vice sample holder for three up to 22mm samples
EM-Tec 3V22 triple, compact vice sample holder for three up to 22mm samples – pin (each)
£444.13 Add to basket -
Triple compact vice sample holder for three up to 22mm samples
EM-Tec 3V22 triple compact vice sample holder for 3x up to 22mm samples- M4 (each)
£438.87 Add to basket -
EM-Tec V14 vice clamp sample holder with removable jaw, M4
EM-Tec V14 small vice clamp sample holder with removable jaw, M4 (each)
£65.79 Add to basket -
EM-Tec V14 vice clamp sample holder, pin
EM-Tec V14 vice clamp sample holder, pin (each)
£75.03 Add to basket -
EM-Tec PV18 precision vice clamp sample holder for samples up to 18mm, AISI 304, M4
EM-Tec PV18 precision vice sample holder for bulk samples up to 18mm and thin samples up to 24mm. One fixed jaw and a moving spindle-driven jaw. Ideal for small to medium samples and table top SEMS. The moving jaw has vertical and horizontal notches to hold needle-like samples. Made from AISI 304 stainless steel, M4 mount. (each)
£104.35 Add to basket -
EM-Tec PV18 precision vice clamp sample holder for samples up to 18mm, AISI 304, pin
EM-Tec PV18 precision vice sample holder for bulk samples up to 18mm and thin samples up to 24mm. One fixed jaw and a moving spindle-driven jaw. Ideal for small to medium samples and table top SEMS. The moving jaw has vertical and horizontal notches to hold needle-like samples. Made from AISI 304 stainless steel, pin mount (each)
£106.02 Add to basket
