EM-Tec EBSD and t-EBSD pre-tilt specimen holders and specimen holder kits
EM-Tec EBSD pre-tilt sample holders all include a 70° pre-tilt angle to facilitate EBSD analysis. With a 70° pre-tilt angle there is no need to tilt the SEM sample stage.
Using 70° pre-tilted holders instead of tilting the SEM stage offer distinct advantages:
- Correct EBSD angle when loading sample
- No stage drift in Z-direction
- Choice of 70° or 20° pre-tilt angles

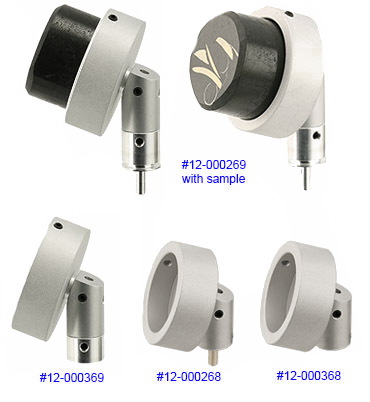

EM-Tec EBSD sample holder kits combine a number of available EM-Tec SEM sample holders: metallographic mount holders, geological slide holder, small vice type holders and S-Clip holders. These can be combine with the EBSD 70° pre-tilt holder and a height extender if needed. The EM-Tec P70 and H70 pre-tilt EBSD holders include both 70° pre-tilt and -20° pre-tilt to enable EBSD measurements at a 90° angle at the same sample. EM-Tec EBSD 70° pre-tilt holders are available with pin and M4 threaded hole.
The available EM-Tec EBSD sample holders and sample holder kits with 70° pre-tilt angle are:
- EM-Tec P70 / H70 EBSD holder for pin stubs and SEMpin stub-type sample holders, pin / M4
- EM-Tec P70M / H70M EBSD holder for Hitachi M4 SEM stubs and M4 threaded holders, with pin / M4
- EM-Tec P71 / H71 EBSD sample holder kit for 25mm (1”) metallographic mounts, with pin / M4
- EM-Tec P72 / H72 EBSD sample holder kit for 30mm (1-1/4”) metallographic mounts, with pin / M4
- EM-Tec P73 / H73 EBSD sample holder kit for up to 48x28mm geological slides, with pin /M4
- EM-Tec P74 / H74 EBSD sample holder kit for FIB lamellas, with pin / M4
- EM-Tec P75 / H75 EBSD S-clip sample holder kit for Si chips & thin samples, with pin / M4
- EM-Tec P76 / H76 EBSD mini vice clamp holder for cross-section samples up to 4mm, with pin / M4
- EM-Tec P77 / H77 EBSD mini split mount vice holder for cross-section samples up to 8mm, with pin / M4
- EM-Tec P78 / H78 EBSD vice clamp holder for samples up to 16mm, with pin / M4
- EM-Tec TE3 t-EBSD holder for three TEM / FIB Lift-out grids with pin / M4
EM-Tec EBSD sample holder kits combine a number of available EM-Tec holders: metallographic mount holders or geological slide holders with the EBSD 70° pre-tilt holder and a height extender for the 30mm/1-1/4” EBSD sample holder to provide clearance. The height extender can be easily removed if the stage adaptor on the SEM stage does not require the use of height extender. The EM-Tec EBSD 70° pre-tilt holders are available with pin and M4 threaded hole.
Please note: Using a stub adaptor with JEOL SEMs is only advised if there is enough height clearance or if the JEOL SEM has been converted to use SEM pin stubs.
Capacity, size and compatibility of EM-Tec pre-tilt and variable tilt holders:
| Product # | Style | Tilt angle | Size w/o pin | Stub /sample compatibility | Stage compatibility |
| 10-002270 | EM-Tec P70 | 70° EBSD | 12.5×12.5x20mm | 3.2mm pin stub | 3.2mm pin stub |
| 10-002274 | EM-Tec P70M | 70° EBSD | 12.5×12.5x20mm | Hitachi M4 thread | 3.2mm pin stub |
| 12-000268 | EM-Tec P71 | 70° EBSD | Ø34x38x29mm | Ø25mm / 1” mount | 3.2mm pin stub |
| 12-000269 | EM-Tec P72 | 70° EBSD | Ø40x48x30mm | Ø32mm / 1-1/4” mount | 3.2mm pin stub |
| 12-000272 | EM-Tec P73 | 70° EBSD | 52x32x25mm | 48x28mm slides | 3.2mm pin stub |
| 12-000273 | EM-Tec P74 | 70° EBSD | 12.5x21x22mm | FIB lift-out grids | 3.2mm pin stub |
| 12-000274 | EM-Tec P75 | 70° EBSD | 12.5x28x22mm | Silicon chips / thin samples | 3.2mm pin stub |
| 12-003274 | EM-Tec P76 | 70° EBSD | 12.5x20x21mm | Cross sections 0-4mm | 3.2mm pin stub |
| 12-003278 | EM-Tec P77 | 70° EBSD | 15x23x24mm | Cross section 0-8mm | 3.2mm pin stub |
| 12-003279 | EM-Tec P78 | 70° EBSD | 25x23x30mm | 0-16mm | 3.2mm pin stub |
| EM-Tec P79 | 70° EBSD | 48x48x30mm | Ø40mm / 1-1/2” mount | 3.2mm pin | |
| 12-002271 | EM-Tec TE1 | 70°/ 20° t-EBSD | 12.5×12.5x30mm | Ø3.05mm TEM grid | 3.2mm pin stub |
| 12-002273 | EM-Tec TE3 | 70°/ 20° t-EBSD | 12.5×12.5x30mm | Ø3.05mm TEM grids | 3.2mm pin stub |
| 12-000370 | EM-Tec H70P | 70° EBSD | 12.5×12.5x20mm | 3.2mm pin stub | M4 thread |
| 12-000371 | EM-Tec H70 | 70° EBSD | 12.5×12.5x20mm | Hitachi M4 thread | M4 thread |
| 12-000368 | EM-Tec H71 | 70° EBSD | Ø34x38x29mm | Ø25mm / 1” mount | M4 thread |
| 12-000369 | EM-Tec H72 | 70° EBSD | Ø40x48x29mm | Ø32mm / 1-1/4” mount | M4 thread |
| 12-000372 | EM-Tec H73 | 70° EBSD | 52x32x25mm | 48x28mm slides | M4 thread |
| 12-000373 | EM-Tec H74 | 70° EBSD | 12.5x21x22mm | FIB lift-out grids | M4 thread |
| 12-000374 | EM-Tec H75 | 70° EBSD | 12.5x28x22mm | Si-chips / thin samples | M4 thread |
| 12-003374 | EM-Tec H76 | 70° EBSD | 12.5x20x21mm | Cross sections 0-4mm | M4 thread |
| 12-003378 | EM-Tec H77 | 70° EBSD | 15x23x24mm | Cross section 0-8mm | M4 thread |
| 12-003379 | EM-Tec H78 | 70° EBSD | 25x23x30mm | 0-16mm | M4 thread |
| 12-003271 | EM-Tec TE1 | 70°/ 20° t-EBSD | 12.5×12.5x30mm | Ø3.05mm TEM grid | M4 thread |
| 12-003273 | EM-Tec TE3 | 70°/ 20° t-EBSD | 12.5×12.5x30mm | Ø3.05mm TEM grids | M4 thread |
EBSD holders with pin stub fitting
-
EBSD 70° pre-tilt sample holder for Ø25mm mounts – pin
EM-Tec P71 EBSD 70° pre-tilt sample holder for Ø25mm / Ø1inch mounts – pin (each)
£93.48 Add to basket -
EBSD 70° pre-tilt sample holder for Ø30mm/Ø32mm mounts – pin
EM-Tec P72 EBSD 70° pre-tilt sample holder for Ø30mm / Ø32mm / Ø1-1/4inch mounts – pin (each)
£113.01 Add to basket -
EBSD 70° pre-tilt sample holder for geological slides
EM-Tec P73 EBSD 70° pre-tilt sample holder for geological slides up to 48 x 28mm – pin (Each)
£218.99 Add to basket -
EBSD 70° pre-tilt holder for FIB lift-out lamella – pin
EM-Tec P74 EBSD 70° pre-tilt sample holder for FIB lift-out lamella- pin (each)
£63.64 Add to basket -
EBSD 70° pre-tilt S-Clip holder for Si-chips/thin samples
EM-Tec P75 EBSD 70° pre-tilt S-Clip sample holder for Si-chips or thin sample s- pin (each)
£60.56 Add to basket -
TE1 t-EBSD holder for single TEM / FIB lift-out grid – pin
EM-Tec TE1 t-EBSD holder for single TEM / FIB Lift-out grid- pin (each)
£199.68 Add to basket -
E3 t-EBSD holder for three TEM / FIB lift-out grid s- pin
EM-Tec TE3 t-EBSD holder for three TEM / FIB lift-out grids – pin (each)
£335.73 Add to basket -
EBSD 70° pre-tilt mini-vice holder for cross sections
EM-Tec P76 EBSD 70° pre-tilt mini-vice sample holder for cross sections up to 4mm – pin (each)
£60.56 Add to basket -
EBSD 70° pre-tilt split mount holder for cross sections
EM-Tec P77 EBSD 70° pre-tilt split-mount sample holder for cross sections up to 8mm – pin (each)
£60.56 Add to basket -
EBSD 70° pre-tilt vice clamp sample holder
EM-Tec P78 EBSD 70° pre-tilt vice clamp sample holder for samples up 16mm – pin (each)
£60.56 Add to basket -
P79 EBSD 70° pre-tilt sample holder for Ø40/Ø38mm, pin
EM-Tec P79 EBSD 70° pre-tilt sample holder for Ø40mm / Ø38mm / Ø1-1/2 inch mounts, pin(each)
£109.70 Add to basket
EBSD holders with Hitachi M4 fitting
-
H71 EBSD 70° pre-tilt sample holder for Ø25mm mounts – M4
EM-Tec H71 EBSD 70° pre-tilt sample holder for Ø25mm / Ø1inch mounts – M4 (each)
£90.85 Add to basket -
EBSD 70° pre-tilt sample holder for Ø30mm / Ø32mm mounts
EM-Tec H72 EBSD 70° pre-tilt sample holder for Ø30mm / Ø32mm / Ø1-1/4inch mounts – M4 (each)
£110.38 Add to basket -
EBSD 70° pre-tilt holder for geological slides up to 48 x 28mm
EM-Tec H73 EBSD 70° pre-tilt sample holder for geological slides up to 48 x 28mm – M4 (each)
£213.73 Add to basket -
EBSD 70° pre-tilt sample holder for FIB lift-out lamella- M4
EM-Tec H74 EBSD 70° pre-tilt sample holder for FIB lift-out lamella – M4 (each)
£63.64 Add to basket -
EBSD 70° pre-tilt S-Clip sample holder for Si-chips
EM-Tec H75 EBSD 70° pre-tilt S-Clip sample holder for Si-chips or thin samples – M4 (each)
£60.56 Add to basket -
TE1 t-EBSD holder for single TEM / FIB lift-out grid – M4
EM-Tec TE1 t-EBSD holder for single TEM / FIB Lift-out grid- M4 (each)
£197.93 Add to basket -
BSD 70° pre-tilt mini-vice holder for cross sections to 4mm
EM-Tec H76 EBSD 70° pre-tilt mini-vice sample holder for cross sections up to 4mm – M4 (each)
£60.56 Add to basket -
EBSD 70° pre-tilt split mount holder for cross sections 8mm
EM-Tec H77 EBSD 70° pre-tilt, split-mount sample holder for cross sections up to 8mm – M4 (each)
£60.56 Add to basket -
TE3 t-EBSD holder for three TEM / FIB lift-out grid – M4
EM-Tec TE3 t-EBSD holder for three TEM / FIB lift-out grid – M4 (each)
£333.98 Add to basket -
EBSD 70° pre-tilt vice clamp holder for samples to 16mm
EM-Tec H78 EBSD 70° pre-tilt vice clamp sample holder for samples up 16mm – M4 (each)
£60.56 Add to basket -
P79 EBSD 70° pre-tilt sample holder for Ø40/Ø38mm, M4
EM-Tec H79 EBSD 70° pre-tilt sample holder for Ø40mm / Ø38mm / Ø1-1/2 inch mounts, M4 (each)
£108.01 Add to basket
