EM-Tec gripping stub and stub based vice holders

EM-Tec gripping stub and stub based vice holders are useful to grip and hold SEM specimens without much need for specimen preparation. Ideal for cross-section and edge-on imaging. The comprehensive selection of this type of cost-effective gripping and vice type holders is compatible with  SEMs using pin stubs (FEI, Zeiss, Tescan, Phenom SEMs using M4 thread (Hitachi and EM-Tec SEM stage adapters) and JEOL SEMs.

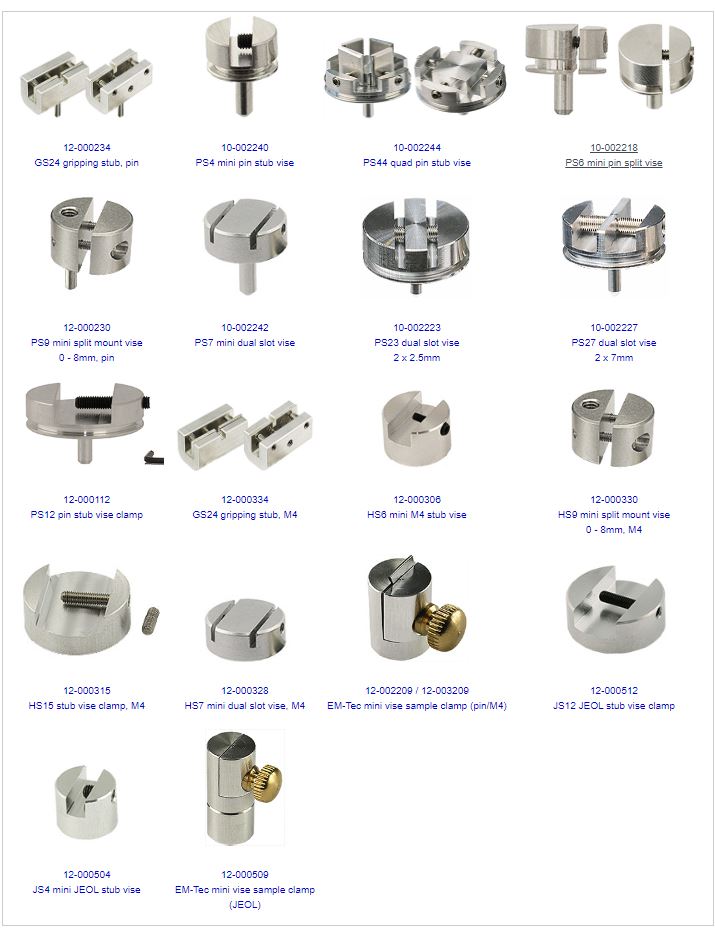

EM-Tec pin stub compatible gripping stub and stub based vice holders:

  • EM-Tec GS24 gripping stub holder with clamping plate to hold specimens or tissue up to 4mm thick.  Specimen is held by the clamping plate which is pushed with set screws. Also useful for holding tissue for dehydration and CDP processing.  Holder size is 24x13x12mm; fits in any SEM using standard 3.2mm pin stubs. Ref: McTurk, G., Bulman, S., Ocklefors, C.C. Journal of microscopy 127,233. 1982.
  • EM-Tec PS4 mini pin stub vice clamp for specimen thickness from 0-4mm. The specimen is held vertically with a small set screw. Most effective way to study cross sections of thin specimens. Holder size w/o pin is Ø12.7×7.2mm.
  • EM-Tec PS44 quadruple pin stub vice clamp for 4 specimens with 0-4mm thickness. The specimens are held vertically with 4 small set screws.  Most effective way to study cross sections or thin specimens. Holder size w/o pin is Ø25.4 x 7.2mm. Standard pin.
  • EM-Tec PV5 mini specimen vice clamp for specimen thickness from 0-5mm. The specimen is held vertically between the vice jaws. The vice jaws are tightened by a brass thumb screw. Holder size w/o pin is Ø12.2x17mm
  • EM-Tec PS6 mini pin stub split vice clamp for specimen thickness from 0-6mm. The specimen is clamped between the two mini vice clamps. The split vice jaws are closed by an allen screw. Closed split vice diameter is 12.7mm; when opened it is 19×12.7mm.
  • EM-Tec PS9 mini split mount vice clamp for specimen thickness from 0-8mm. The specimen is clamped between the two vice jaws of the split mount. The split mount vice jaws are closed by two allen screws. Closed split mount vice dimensions are Ø15x10mm; when opened 23x15x10mm.
  • EM-Tec PS7 mini pin stub dual slot vice with two slots of one mm wide. Ideal for holding thin wafer pieces specimens for cross section imaging. Specimens are clamped by set screws. Holder size w/o pin is Ø15x6mm.
  • EM-Tec PS12 pin stub vice clamp for specimen thickness from 0-12mm. The specimen is held vertically with a set screw.  Most effective way to study cross section of thin specimens. Holder size w/o pin is Ø25×7.2mm.
  • EM-Tec PS23 pin stub dual slot vice with two slots of 2.5 mm wide. Ideal for holding thin wafer pieces specimens for cross section imaging. Specimens are clamped by set screws. Holder size w/o pin is Ø25×7.2mm.
  • EM-Tec PS27 pin stub dual slot vice with two slots of 7 mm wide. Ideal for holding thin specimens for cross section imaging. Specimens are clamped by set screws. Holder size w/o pin is Ø25×7.2mm.

EM-Tec gripping stub and stub based vice holders with M4 thread:

  • EM-Tec GS24 gripping stub holder with clamping plate to hold specimens or tissue up to 4mm thick.  Specimen is held by the clamping plate which is pushed with set screws. Also useful for holding tissue for dehydration and CDP processing.  Holder size is 24x13x12mm; M4 threaded hole in base. Ref: McTurk, G., Bulman, S., Ocklefors, C.C. Journal of microscopy 127,233. 1982.
  • EM-Tec HV5 mini specimen vice clamp for specimen thickness from 0-5mm. The specimen is held vertically between the vice jaws. The vice jaws are tightened by a brass thumb screw. Holder size is Ø12.2x17mm x M4.
  • EM-Tec HS6 mini M4 cylinder stub vice clamp for specimen thickness from 0-6mm. The specimen is held vertically with a small set screw.  Simple and cost-effective way to clamp cross section of thin specimens. Holder stub size is Ø15x10mm xM4.
  • EM-Tec HS9 mini split mount vice clamp for specimen thickness from 0-8mm. The specimen is clamped between the two vice jaws of the split mount. The split mount vice jaws are closed by two Allen screws. Closed split mount vice dimensions are Ø15x10mm; when opened 23x15x10mm. M4 threaded hole in the base.
  • EM-Tec HS15 M4 cylinder stub vice clamp for specimen thickness from 0-16mm. The specimen is held vertically with a set screw (multiple lengths are supplied). Cost effective and practical small vice clamp base on the stub size of Ø25x10mm xM4.
  • EM-Tec HS7 mini pin stub dual slot vice with two slots of one mm wide. Ideal for holding thin wafer like specimens for cross section imaging. Specimen are clamped by set screws. Holder size is Ø15x6mmxM4.

EM-Tec JEOL stub based vice holders:

  • EM-Tec  JS4 mini cylinder stub vice clamp for specimen thickness from 0-4mm. The specimen is held vertically with a small set screw.  Most effective way to study cross section of thin specimens. Holder stub size is Ø12.2x10mm.
  • EM-Tec JV5 mini specimen vice clamp for specimen thickness from 0-5mm. The specimen is held vertically between the vice jaws. The vice jaws are tightened by a brass thumb screw. Compatible with holders for the Ø12.2x10mm JEOL stub with a height of 17mm above the stub.
  • EM-Tec JS12 cylinder stub vice clamp for specimen thickness from 0-12mm. The specimen is held vertically with a set screw (multiple lengths are supplied). Cost effective and practical small vice clamp based on the stub size of Ø25x10mm.

Capacity and dimensions of the EM-Tec gripping stub and stub based vice holders

Product #

Type

Capacity

Dimensions w/o pin

Securing methode

SEM stage compatibility

12-000234

EM-Tec GS24

24x7x4mm

24x13x12mm

Screw + plate

Standard 3.2mm pin

10-002240

EM-Tec PS4

0-4mm

Ø12.7×7.2mm

Set screw

Standard 3.2mm pin

10-002244

EM-Tec PS44

4 x 0-4mm

Ø25.4×7.2mm

4 x Set screw

Standard 3.2mm pin

12-002209

EM-Tec PV5

0-5mm

Ø12.2x17mm

Vice jaws

Standard 3.2mm pin

10-002218

EM-Tec PS6

0-6mm

Ø12.7×7.2mm

Mini vice jaws

Standard 3.2mm pin

12-000230

EM-Tec PS9

0-8mm

Ø15x10mm

Mini vice jaws

Standard 3.2mm pin

10-002242

EM-Tec PS7

2x1mm

Ø15x6mm

Set screw

Standard 3.2mm pin

12-000112

EM-Tec PS12

0-12mm

Ø25×7.2mm

Set screw

Standard 3.2mm pin

10-002223

EM-Tec PS23

2 x 2.5mm

Ø25×7.2mm

Set screw

Standard 3.2mm pin

10-002227

EM-Tec PS27

2 x 7mm

Ø25×7.2mm

Set screw

Standard 3.2mm pin

12-000334

EM-Tec GS24

24x7x4mm

24x13x12mm

Screw + plate

M4 thread

12-003209

EM-Tec HV5

0-5mm

Ø12.2x17mm

Vice jaws

M4 thread

12-000306

EM-Tec HS6

0-6mm

Ø15x10mm

Set screw

M4 thread

12-000330

EM-Tec HS9

0-8mm

Ø15x10mm

Mini vice jaws

M4 thread

12-000315

EM-Tec HS15

0-16mm

Ø25x10mm

Set screw

M4 thread

12-000328

EM-Tec HS7

2x1mm

Ø15x6mm

Set screw

M4 thread

12-000504

EM-Tec JS4

0-4mm

Ø12.2x10mm

Set screw

JEOL 12.2mm

12-000509

EM-Tec JV5

0-5mm

Ø12.2x17mm

Vice jaws

JEOL 12.2mm

12-000512

EM-Tec JS12

0-12mm

Ø25x10mm

Set screw

JEOL 25mm
