EM-Tec holders and stubs for JEOL NeoScope table top SEMs

This special selection of EM-Tec specimen holders and specimen stubs are fully compatible with the JEOL NeoScope table top SEMs providing increased productivity, quicker specimen holding and improved imaging.

The standard JEOL NeoScope series table top SEMs comprise X/Y movements of 35mm and allow for a maximum height of 50mm. The standard specimen stage provides X/Y movements and Z adjustment, but tilt and rotation are only optionally available.

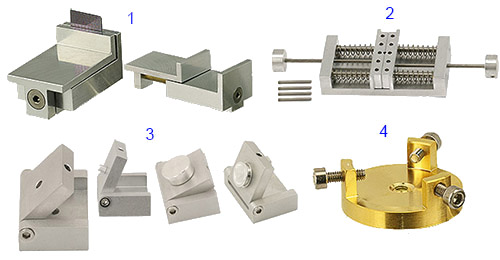

Currently available stubs and holders for the JEOL NeoScope series are:

    1- EM-Tec V22 compact vice type specimen holder for up to 22mm
    2- EM-Tec VS26 compact double action spring-loaded vice holder for up to 26mm
    3- EM-Tec TV25 variable 0-90° angle tilt holder for stubs up Ø38mm
    4- EM-Tec GR20 bulk specimen holder for up to Ø20mm, gilded brass

1 – EM-Tec JV40 and JV41 stage adapter kits for the JEOL NeoScope series table top SEMs (images and ordering information)

EM-Tec JV41 stage adapter kit is fully compatible with the standard X/Y stage of the JEOL NeoScope JCM7000. With the EM-Tec JV41 stage adapter, many of the EM-Tec specimen holders with M4 threaded hole can be used on the JEOL NeoScope JCM7000. The EM-Tec JV41 stage adapter height can be adjusted from 15 to 49mm. It consists of the following parts:

  • Stage adapter plate with female M6 thread
  • Brass stage adapter pillars (adjustable height 15-49mm) with male M6 thread and M4 screw op top
  • aluminium M6 locking ring.



EM-Tec JV40 stage adapter kit is fully compatible with the standard X/Y stage of the JEOL NeoScope JCM-6000plus, JCM-6000 and JCM-5000 table top SEMs. With the EM-Tec JV40 stage adapter, a vast range of specimen holders can be used on the JEOL NeoScope, offering improved specimen handling and access to the vast range of EM-Tec versatile specimen holders. It consists three parts:

  • Stage adapter discs insert with female M6 thread
  • Brass stage adapter pillar (adjustable height) with male M6 thread and M4 screw on top
  • aluminium M6 locking ring.

It replaces the standard JEOL NeoScope stage adapter as a drop in style replacement.  The top of the adjustable height pillar includes an M4 screw. Fully compatible with all EM-Tec SEM specimen holders with M4 threaded hole.

2 –EM-Tec specimen holders for the JEOL NeoScope series table top SEMs ( images and ordering information)

EM-Tec specimen holders with M4 threaded hole are fully compatible with the JEOL NeoScope table top SEMs using the EM-Tec JV-40 stage adapter. The specimen holders fir within the stage travel limits and maximum available height.  With the EM-Tec holders, tilt can be added to the specimen movements. The EM-Tec specimen holders enable quick and secure holding of specimens without the use of adhesives.

Capacity, use and dimensions of the EM-Tec specimen holders:

Product # Holder type Capacity Holder size Specimen holding method
12-000331 EM-Tec HS2 mini tube / needle clamp 0 – Ø2mm Ø15x10mm x M4 Set screw
12-000311 EM-Tec HS3 mini SampleClamp 2mm thickness Ø15x10mm x M4 Screw/washer
12-003209 EM-Tec HV5 mini specimen vice clamp 0 – 5mm Ø12.2x17mm x M4 Vice jaws
12-000334 EM-Tec GS24 gripping stub 0-4mm 24x13x12mm x M4 Plate + set screws
12-000306 EM-Tec HS6 mini cylinder stub vice 0 – 6mm Ø15x10mm x M4 Set screw
12-000330 EM-Tec HS9 mini split mount vice 0 – 8mm Ø15x10mm x M4 Mini vice jaws
12-000315 EM-Tec HS15 stub vice clamp 0- 16mm Ø25x10mm x M4 Set screw
12-000328 EM-Tec HS7 mini dual slot vice 2 x 1mm Ø15x6mm x M4 Set screw
12-000312 EM-Tec J4 multi JEOL Ø9.5mm stub holder 4x Ø9.5mm Ø32x10mm x M4 Set screw
12-000313 EM-Tec J3 multi JEOL Ø12.2mm stub holder 3x Ø12.2mm Ø32x10mm x M4 Set screw
12-000314 EM-Tec P4 multi in stub holder 4 x Ø12.7mm Ø31.5×10.5mm x M4 Set screw
12-000324 EM-Tec HS16 stub clamp 0 – Ø16mm Ø25x10mm x M4 Set screw
12-000345 EM-Tec H45P pre-tilt 45° for pin Ø3.2mm pin Ø12.7x17mm x M4 Set screw
12-003315 EM-Tec HS19 swivel stub vice clamp 0-16mm/90°-0°-90° Ø12.7x17mm x M4 M4
12-003340 EM-Tec HS17 mini swivel vice holder 0-4mm/90°-0°-90° Ø12x23mm x M4 Set screw
12-003330 EM-Tec HS18 mini swivel split mount vice 0-8mm/90°-0°-90° Ø15x30mm x M4 Mini vice clamps
12-003110 EM-Tec HGS10 swivel head specimen holder 010mm/90°-0°-90° Ø25x30mm x M4 Set screws
12-000341 EM-Tec H45 pre-tilt 45° for M4 M4 Ø12.7x17mm x M4 Set screws
12-003211 EM-Tec HS15 swivel mount Ø15mm, 0-180° Ø15x30mm x M4 Adhesive
12-000347 EM-Tec TV12 variable tilt mount 11x12mm, 0-90° 14x14x14/20mm Adhesive
12-000348 EM-Tec TV25 variable tilt holder M4, 0-90° 35x25x10.5/29.5mm M4
12-000326 EM-Tec M26 metallographic mount holder Ø25mm / Ø1” Ø34×12.5mm Set screw
12-000332 EM-Tec M32 metallographic mount holder Ø30mm / Ø1-1/4” Ø40×12.5mm Set screw
12-000323 EM-Tec GB16 vice bulk specimen holder 16mm 22x19x10mm Set screw
12-000325 EM-Tec B26 vice bulk specimen holder 26mm 34x24x13mm Set screw
12-000317 EM-Tec GR20 bulk specimen holder Ø20mm Ø25x10mm Set screw
12-000333 EM-Tec R32 bulk specimen holder Ø32mm Ø40×12.5mm Set screw
12-000300 EM-Tec V22 compact vice holder 22mm 39x25x22mm Screw driven vice jaw
12-003228 EM-Tec VS8 mini spring-loaded vice 0 – 8mm 25x30x12.5mm Spring-loaded vice plate
12-000321 EM-Tec VS12 spring-loaded vice holder 0 – 12mm / Ø18mm 30x25x15mm Spring loaded vice jaw
12-000322 EM-Tec VS26 spring-loaded vice holder 0 – 26mm / Ø34mm 50x25x15mm Spring loaded vice jaw
12-000308 EM-Tec SC1 SampleClamp small 15x10mm 23x20x9mm 2x S-Clamp strips
12-000309 EM-Tec SC2 SampleClamp medium 25x15mm 33x25x9mm 2x S-Clamp strips
12-000310 EM-Tec SC2R SampleClamp recessed 25x15mm 33x25x14mm 2x S-Clamp strips



3 – EM-Tec S-Clip holders for the JEOL NeoScope series table top SEMs (images at ordering information)

The EM-Tec S-Clips holders with the spring-loaded specimen clips compatible with the JEOL NeoScope series table top using the EM-Tec JV40 stage adapter are:

  •  standard horizontal
  •  45°  and 45° /90°  specimen stubs
  • 90° specimen stubs.

They are useful to hold thin specimen such as Si wafer chips, metal strips, plastic foils, etc.

Specifications of the EM-Tec S-Clip holders for the JEOL NeoScope series:

Product # Style Stub size  S-Clips #
12-004920-1/2/3 Horizontal Ø25x10mm 1 or 2 or 3
12-004930-1/2/3 Horizontal Ø32x10mm 1 or 2 or 3
12-004911 +/- 90° Ø15x15mm 1
12-004947 0-180° variable tilt 11x12mm 1
12-004925 45° Ø25x16mm 1
12-004927 45°/90° Ø25x16mm 2
12-004929 2 x 90° Ø25x16mm 2
12-004914 4 x 90° 12.7 x 12.7mm 4



4 – EM-Tec specimen stubs for the JEOL NeoScope series table top SEMs (see the full range of JEOL cylinder stubs)

JEOL NeoScope series table top SEMs mostly use 25mm JEOL stubs. These are also used on the optionally available tilt/rotation stage. When using EM-Tec specimen holders, the standard JEOL 9.5, 12.2,25 and 32mm stubs can be used as well. Currently available JEOL stubs for JEOL NeoScope JCM-6000plus, JCM6000 and JCM-5000 are:

  • Standard flat JEOL cylinder stubs with the popular 25, 9.5, 12.2 and 32mm diameters. Available with heights of 5 and 10mm.
  • Angled JEOL cylinder stubs with 45°, 45/90° and 90° pre-tilt surfaces.
  • Dish type pin stub with 12.2mm diameter and recessed top for fluid specimens and solutions.



5 – EM-Tec SEM stub adapters for the JEOL NeoScope series table top SEMs (images and ordering information)

With the EM-Tec SEM stub adapters, you can use the standard pin stubs, Cambridge S4 stubs and Zeiss pin stubs on the JEOL NeoScope series tabletop SEMs. The JEOL stubs with the M4 threaded base fit directly on the EM-Tec JV-40 stage adapter and do not require a stub adapter.  With a stub adapter, there is no need to re-mount the specimen and specimen integrity is maintained. Also useful for using calibration standards which are be mounted on a pin stub. Recommended SEM stub adapters are:

EM-Tec H15P stub adapter with M4 thread to accept all standard and Zeiss type pin stubs
EM-Tec HS4 adapter with M4 thread to accept the 32mm Cambridge S4 mounts

Specifications and size of the JEOL M4 adapters:

Product # Type Accepts and adapts to Base Overall size
11-000304 H15P Pin stubs with Ø3.2×9.5mm & Ø3.2x6mm pin M4 thread Ø15x15mm
11-000305 HS4 Cambridge S4 mount M4 thread Ø30x10mm
